Sheet metal fabrication is one of the most fundamental processes in modern manufacturing and engineering. It’s used to create everything from car panels and aircraft components to machinery housings, ducts, and industrial enclosures. The process transforms flat sheets of metal into functional, three-dimensional parts using a combination of cutting, bending, forming, and joining techniques.
For engineers, understanding the key fabrication methods and how they influence design, cost, and material selection is essential. This guide explains the core sheet metal fabrication techniques that every engineer should know.
1. Cutting
Cutting is the first and most essential step in sheet metal fabrication. It involves slicing the metal sheet into desired shapes and sizes before further processing. Engineers must select the right cutting method based on the thickness, material type, precision required, and production volume.
a) Shearing
Shearing is a mechanical cutting process that uses a straight blade to make long, straight cuts in metal sheets. It’s ideal for trimming edges or cutting large sheets into smaller sections.
- Best for: Mild steel, aluminium, and stainless steel sheets.
- Advantages: Fast, clean edges, minimal material waste.
- Limitation: Not suitable for complex or curved shapes.
b) Laser Cutting
Laser cutting uses a high-powered laser beam to melt or vaporise metal, creating clean, precise cuts with minimal distortion.
- Best for: Thin to medium-thickness metals and complex geometries.
- Advantages: High precision, smooth edges, minimal heat damage.
- Limitation: Slower and more expensive for thicker metals.
c) Plasma Cutting
Plasma cutting employs a high-temperature plasma arc to cut through electrically conductive materials.
- Best for: Medium to thick metals like steel and aluminium.
- Advantages: Fast cutting speed and suitable for heavy-duty applications.
- Limitation: Less precision than laser cutting; rougher edges.
d) Waterjet Cutting
Waterjet cutting uses a jet of water mixed with abrasives to slice through metal without generating heat.
- Best for: Heat-sensitive materials or thick sheets.
- Advantages: No thermal distortion, excellent edge quality.
- Limitation: Slower than laser or plasma cutting; higher operational cost.
2. Bending and Forming
Once metal sheets are cut, they’re bent or formed into the desired shapes. These processes use mechanical force to reshape metal without removing material.
a) Press Brake Bending
This is one of the most common bending methods, using a press brake machine to apply force along a straight line.
- Process: A punch pushes the metal sheet into a die to create bends at specific angles.
- Applications: Enclosures, brackets, panels, and structural components.
- Factors to Consider: Material thickness, bend radius, and grain direction — all affect bending quality and precision.
b) Roll Forming
Roll forming involves passing a sheet through consecutive sets of rollers that gradually bend it into the desired cross-sectional shape.
- Best for: Long parts with consistent profiles like channels or beams.
- Advantages: High-speed, continuous production with excellent repeatability.
- Limitation: High initial tooling cost; not suitable for small batches.
c) Stretch Forming
In stretch forming, the metal sheet is clamped and stretched over a die, producing smooth, curved surfaces.
- Applications: Aerospace and automotive body panels.
- Advantages: Uniform surface finish and precise curves.
- Limitation: Expensive equipment; used mainly in large-scale operations.
d) Deep Drawing
Deep drawing forms flat sheet metal into hollow shapes such as cans, cylinders, or housings by stretching it into a die cavity.
- Best for: Components with significant depth-to-diameter ratios.
- Advantages: Produces seamless parts with high strength.
- Limitation: Requires ductile materials like aluminium or mild steel.
3. Punching
Punching is a fast, efficient method for creating holes, slots, or shapes in sheet metal using a punch-and-die system.
- How it works: The punch presses through the metal into the die, shearing out the unwanted section (slug).
- Applications: Ventilation panels, mounting holes, electrical enclosures.
- Advantages: High-speed operation, excellent repeatability, and suitable for large production runs.
- Limitations: Can cause burrs on thicker materials, which may require deburring.
Modern CNC punch presses can create complex hole patterns and even small formed features, improving efficiency in sheet metal design.

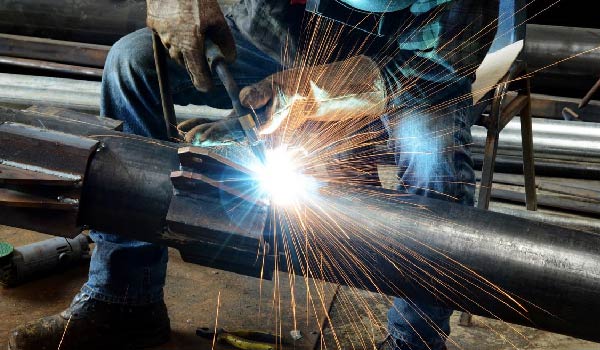

4. Welding and Joining
After cutting and forming, fabricated parts are often assembled through welding or mechanical fastening.
a) MIG (Metal Inert Gas) Welding
This technique uses a consumable wire electrode and shielding gas to join metals. It’s fast, versatile, and ideal for thicker materials.
- Applications: Structural frames, brackets, and machinery housings.
- Advantages: High productivity and good penetration.
- Limitation: Requires post-weld cleaning and proper ventilation.
b) TIG (Tungsten Inert Gas) Welding
TIG welding uses a non-consumable tungsten electrode for precise control and clean welds.
- Applications: Thin sheets, stainless steel, and aluminium.
- Advantages: Superior aesthetics, minimal spatter.
- Limitation: Slower process and requires skilled operators.
c) Spot Welding
Commonly used in automotive and appliance manufacturing, spot welding joins overlapping sheets by applying heat and pressure through electrodes.
- Advantages: Fast and economical for high-volume production.
- Limitation: Limited to thin sheet joints.
d) Riveting and Fastening
When welding isn’t suitable, engineers may use rivets, screws, or bolts to assemble sheet metal parts.
- Advantages: Easy disassembly and no heat-affected zones.
- Limitation: May add weight or create potential weak points.
5. Finishing and Surface Treatment
After fabrication, surface finishing enhances both the appearance and durability of sheet metal products. The finish also improves corrosion resistance, paint adhesion, and overall lifespan.
a) Deburring and Grinding
Machining and cutting processes often leave sharp edges or burrs. Grinding and deburring remove imperfections for safer handling and better surface quality.
b) Sandblasting and Polishing
These methods clean the surface and improve texture before coating or painting. Sandblasting also helps create a uniform matte finish.
c) Powder Coating
A dry powder (usually epoxy or polyester-based) is electrostatically applied and then cured under heat to form a hard, protective layer.
- Advantages: Excellent durability, impact resistance, and environmental friendliness.
d) Galvanising and Plating
Zinc galvanising or electroplating provides corrosion resistance for metals exposed to harsh environments. Stainless steel may undergo passivation to enhance its natural resistance to rust.
6. Advanced and Emerging Fabrication Techniques
With modern technology, new fabrication methods are expanding the possibilities of what can be achieved with sheet metal.
a) CNC Machining Integration
CNC technology allows precise automation of cutting, punching, and bending operations. Engineers can produce complex parts directly from CAD models with minimal manual input.
b) Laser and Robotic Welding
Automated laser welding systems deliver faster, cleaner joints, while robots ensure consistent weld quality across high-volume production.
c) Additive and Hybrid Manufacturing
Some manufacturers are combining traditional sheet metal fabrication with 3D printing for rapid prototyping and complex design features. Hybrid processes allow engineers to merge additive (building up) and subtractive (cutting away) methods for maximum flexibility.
d) Smart Factory Integration
Digital monitoring systems and IoT-enabled machines are improving fabrication efficiency. Real-time data helps predict tool wear, optimise production flow, and maintain consistent quality standards.
7. Key Design Considerations for Engineers
Understanding fabrication techniques helps engineers design more efficient and manufacturable components. Some important design tips include:
- Minimise unnecessary bends or complex shapes — simpler designs reduce production costs.
- Consider bend radii and grain direction — metals bend more easily across the grain.
- Standardise hole sizes — this allows faster punching and tool reuse.
- Add relief cuts to prevent tearing near bends.
- Plan for joining and finishing during the design stage to avoid rework.
Collaborating closely with fabricators during the design phase ensures the part is both functional and cost-effective.
Conclusion
Sheet metal fabrication combines precision, creativity, and engineering knowledge to shape the modern world. From cutting and forming to welding and finishing, each technique contributes to the strength, performance, and design of metal components used across every industry.
By understanding these essential fabrication methods, engineers can design smarter, manufacture more efficiently, and push the boundaries of what’s possible with metal.
Whether for heavy industry, construction, or consumer products, sheet metal fabrication remains one of the most versatile and indispensable processes in modern engineering.
